Sensor
Digital only: a sensor with digital readout to the transmitter. No visual readout.
Options

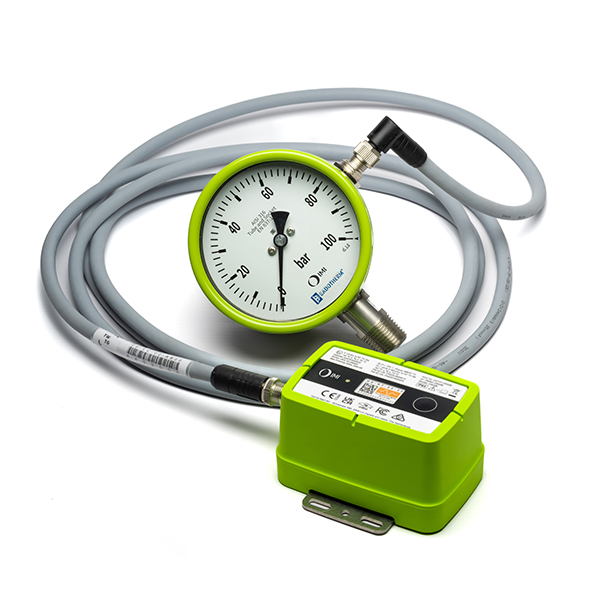

With gauge: a Badotherm analog gauge with built-in digital readout to the transmitter.
Range (relative, bar or PSI, +/- 0.4% FS)
Digital only:
-1 … 9 bar
0 … 2.5 – 1000 bar
Version with gauge:
-1 … 0 – 600 bar
Mounting
Inside and outside UNF, NTP, metric, and G thread options
Lifetime
Battery life up to 10 years
Operating temperature transmitter
-40°C to 70°C (-40°F to 158°F)
Certifications
ATEX Zone 0 / IECEx Zone 0 / North America Class 1 Div 1 / Class 1 Zone 0
(Ex II 1G Ex ia IIC T4 Ga IS Class I, Division 1, Group ABCD T4 Class I, Zone 0 AEX/Ex ia IIC T4 Ga)
IP65
Wireless protocols
LoRaWAN 868, 915, 923 MHz (Region-specific frequencies and certifications upon request)
Dimensions
Transmitter: 100 x 70 x 57 mm (L x W x H)
Cable length between sensor and transmitter: default 3 meters
Badotherm gauge: diameter 100 mm
Digital only sensor: diameter 24 / 70 mm height
